Standard formwork panels with aluminium structure
Fenolic Plywood application
Standard Panels
- Usage in walls and pillars
- Manpower demand reduction
- Perfect finishing on concrete surface
- Variable height and width
- Easy and fast assembly
- Several applications
- Weights about 22 Kg/m2
- 3 stretchers for the 3,00m height
- 3 acessories of standard connection
- 15mm plywood, 240gr fenolic
Heights.................... 1,50 / 2,70 / 3,00 m
Widths..................... 0,20 / 0,25 / 0,30 / 0,40 m
0,50 / 0,60 / 0,70 / 0,75 m
0,80 / 0,90 / 1,00 / 1,20 m
Aluminium beams with wood application to vertically or horizontally structure formwork panels
Characteristics
- Area cm2..................................19,87
- Inertia xxcm4..........................613,20
- Inertia yycm4..........................149,32
- AL MG SI.............................0,5 - F22
- Weight........................................5,36
Structural beam for wall or floor panels
Rigid Beam / Aligner
Characteristics
- Area cm2.........................................13,53
- Inertia xxcm4.................................417,57
- Inertia yycm4.................................101,68
- AL MG SI....................................0,5 - F22
- Weight......................................3,65kg/ml

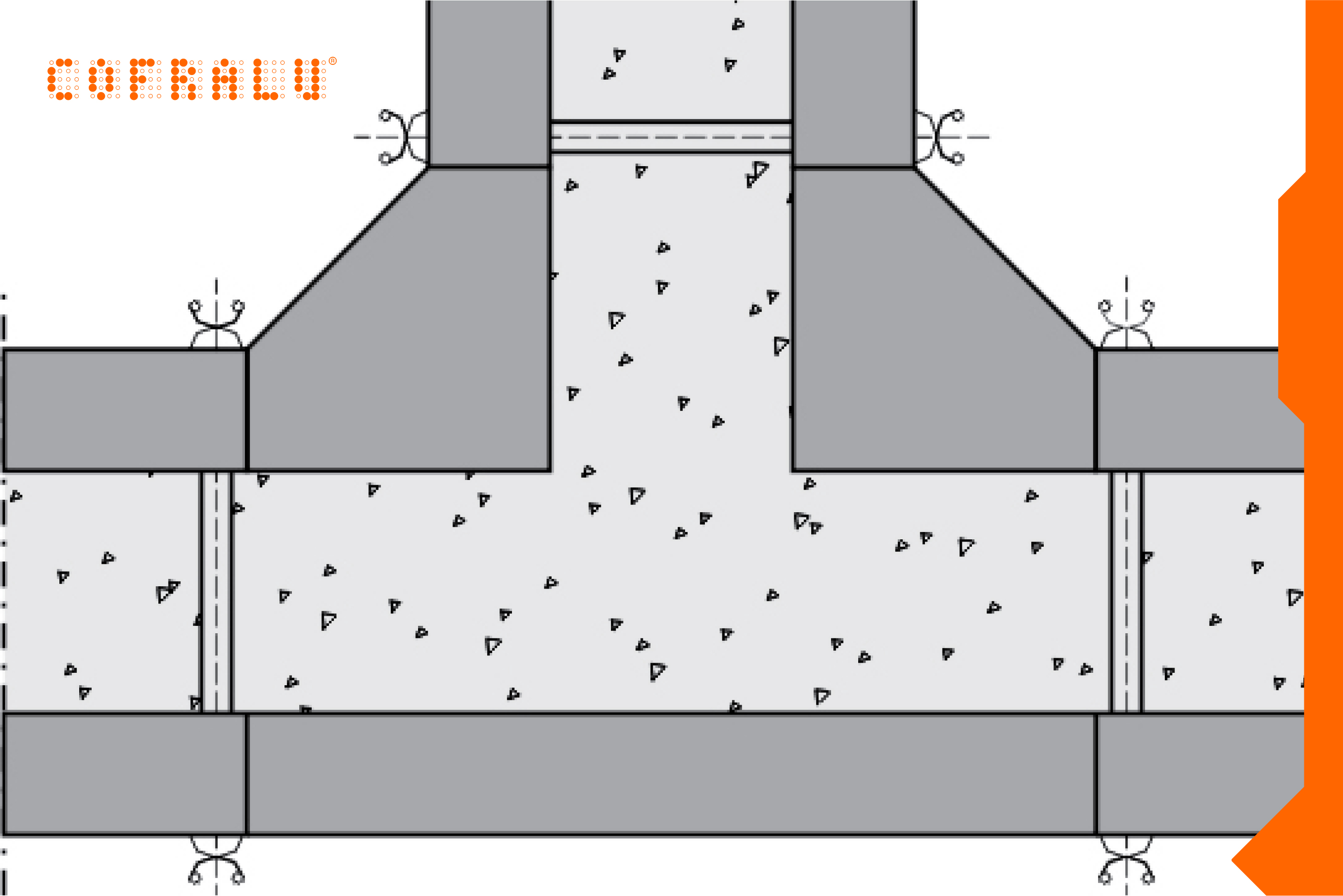

Wall-mounted molding panels
- Walls
- Support Walls
- Deposits
- Stairs / Elevators cores
- Concrete in sight
- Fixed clamp
- Adjustable clamp
- Dywidag tie road
- Safety brackets and work platforms
- Dywidag tie road
- Square based wing nut
For pillar molding
- Concrete in sight
- Fast and easy connection or separation of panels
- 4 moorings per corner for 3m
- Fast moorings on diwydag rod, swirl and nut
- Variable section from 50mm up to 1000mm, with 4 panels
- Section greater than 1000mm with panel association
- Variable section every 50mm
- Corner switch
- Circular base nut
- Diwydag Tie Road
- Lifting Clamp
ACESSORIES
Clamp
Adjustable Clamp
Corner Clamp
Lifting Clamp
Circular base nut
Diwydag Tie Road
Square based wing nut
Plastic cap
Safety work platforms
Safety Bracket
Lifting console
Triangled edged profiler
